Product Dimensions 39.75"h x 39.38"w x 27.56"d

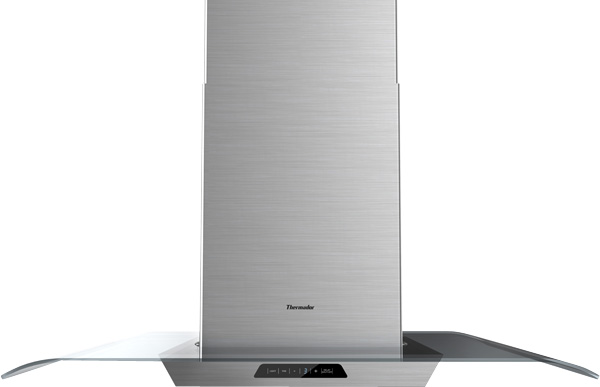

Thermador® Masterpiece® Series 40" Glass Canopy Island Ventilation-Stainless Steel with 600 CFM and halogen lightingRead More
View Options
FAST DELIVERY
Thermador Masterpiece® series 40" glass canopy island ventilation-stainless steel with 600 CFM and halogen lighting
General Specs | |
| Width (in.) | 39.38 |
| Height (in.) | 39.75 |
| Duct Size (in.) | 6 |
| Depth (in.) | 27.56 |
| Color | Stainless Steel |
| Positioning | Stationary |
| Color Finish Name | Stainless Steel |
| Product Weight (lbs.) | 87 |
| Appliance Fit Width (in.) | 40 |
| Maximum CFM | 600 |
| Voltage | 120 |
| Amp | 10 |
| Frequency | 60 |
Construction | |
| Exhaust: | Convertible |
| Chimney: | Fixed |
| Ductwork Type: | Vertical |
Dimensions | |
| Shipping Weight: | 108 |
| Depth, Chimney : | 11.38 |
| Min Chimney Height: | 26 |
| Max Height Above Cooktop: | 30 |
| Min Height Above Cooktop: | 30 |
Display | |
| Controls: | Mechanical |
General Features | |
| Filter Type: | 2 Dishwasher Safe Grease Filters |
| Pollutant Removal: | Externally Vented, Charcoal Filter |
Other | |
| Watts: | 80 |
| Considerations: | Recirculating Installation Option (recirculation kit required) |
| Number of Lights: | 4 |
| Settings: | 2 |
| Air Mover(s) Speed: | 3 |
| Number of Air Movers: | 1 |
Styling | |
| Design: | Glass Canopy Chimney Style |
