Product Dimensions 28"h x 22"w x 27.38"d

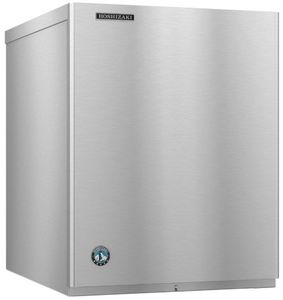

The KM-520MWJ is capable of producing approximately 474 lbs of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications.Read More
$9,210.00
Save $4,605.00
or
Get Up To 12 MonthsSpecial Financing
This Water-cooled, Slim Line Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-520MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.
Up to 474 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 8.45, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8100 BTU/hr, Refrigerant Charge: R-404A, (12.7 oz. / 360 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent
4.65 kWh per 100 lbs @ 90/70, 14.8 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 27.38 |
| Height (in.) | 28 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Collection Code | KM |
| Installation Type | Freestanding |
| Overall Height (in.) | 28 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 474 |
| Width (in.) | 22 |
| Manufacturer Warranty | 3 Year Machine Parts & Labor / 5 Year Compressor & Air Cooled Condenser Coil |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 22 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Lift Up |
| ADA Compliant | No |
| Locking Door | No |
| Color Finish Name | Stainless Steel |
| Voltage | 115V |
| Frequency | 60 |
| Amp | 8.45A |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
