Product Dimensions 33.5"h x 14.88"w x 22.63"d

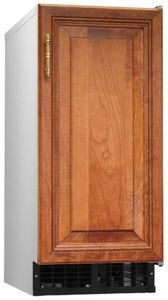

This compact undercounter Cubelet ice machine is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAK-ADDS is capable of producing approximately 92 lbs. of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 27 lbs. of ice at a time.Read More
$9,150.00
Save $4,575.00
or
Get Up To 12 MonthsSpecial Financing
The undercounter design is less than 32″ tall, making it ADA compliant. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.
Up to 92 lbs of ice produced per 24 hours
Up to 27 lbs of built-in storage capacity (ft3)
Produces mini cubelet nugget-style ice
Undercounter design is less than 32″ tall, ADA compliant
Front in, front out airflow
UL approved for outdoor use
Swing style field reversable door
(-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
Environmentally friendly R290 refrigerant
Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 Plug, Amperage: 2.8, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1400 BTU/hr, Refrigerant Charge: R290 (1.9 oz. / 53.86 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
8.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 22.63 |
| Height (in.) | 33.5 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| Overall Height (in.) | 33.5 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 92 |
| Width (in.) | 14.88 |
| Manufacturer Warranty | 2 Years Parts & Labor on Entire Machine |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 14.88 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Right Hinge |
| ADA Compliant | No |
| Locking Door | No |
| Color Finish Name | Stainless Steel |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 2.8 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Nugget |
| Door Panel Type | Solid |
